FC plugin for DIY Solar Scintillation Seeing Monitor

Post by RTJoe » Mon Sep 05, 2016 7:24 am

Hello,
meanwhile I have developed a plugin for the new plugin interface of FireCapture. The plugin requires the DIY Seeing Monitor described in this topic: viewtopic.php?t=16746.


This plugin provides the following functionality inside the FireCapture software:
  • SSSMon measures the current seeing
  • Recording is started if seeing reaches configured minimum quality
  • Recording is paused as long as seeing is worse than configured value
  • Recording is stopped after configured time
  • After recording is stopped and after a configured pause time, a new recording run can be started automatically
  • The maximum number of recording runs is configurable

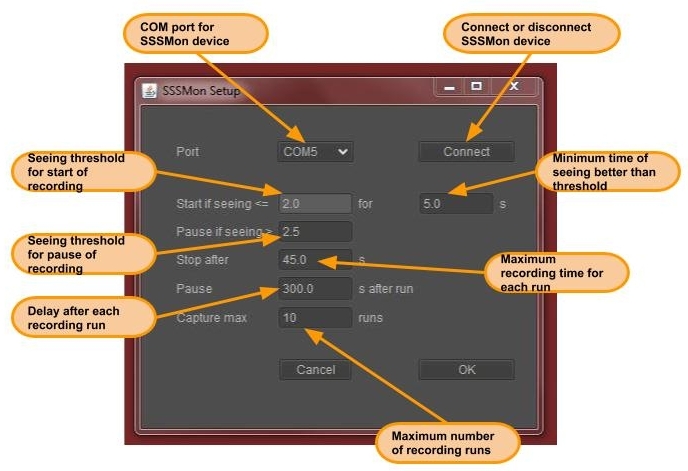

Screenshot of an example setup:
With this setup, the recording is started as soon as seeing is 2.0 or less (smaller value means better seeing). The recording is stopped after 45 seconds. As long as the seeing is worse than 2.5, the recording is paused. After a recording finished, there is a (minimum) delay of 5 minutes (300 seconds) until the next recording might start (if the seeing is better than 2.5 again). A maximum of 10 recoding runs is executed.

Start this setup, have some cold beverage and let the plugin hunt the moments of good seeing.

You can find the plugin for download and additional information on my website: http://www.joachim-stehle.de/sssm_eng.html. Have a look into the documentation for a detailed description how to install and use the plugin.

Feel free to download the software and report your comments.

Joachim



User avatar
Valery
Way More Fun to Share It!!
Way More Fun to Share It!!
Posts: 3591
Joined: Sun Nov 18, 2012 3:13 pm
Has thanked: 33 times
Been thanked: 121 times

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by Valery » Mon Sep 05, 2016 7:53 am

Hi Joachim,

Thanks a lot for your works making a SSM affordable and suited for a FC software.

BTW. PM sent.


Valery


"Solar H alpha activity is the most dynamic and compelling thing you can see in a telescope, so spend accordingly." (c) Bob Yoesle.

Largest full size 185 - 356mm Dielectric Energy Rejection Filters (D-ERF) by ARIES Instruments.

User avatar
Valery
Way More Fun to Share It!!
Way More Fun to Share It!!
Posts: 3591
Joined: Sun Nov 18, 2012 3:13 pm
Has thanked: 33 times
Been thanked: 121 times

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by Valery » Mon Sep 05, 2016 10:34 am

Hi Joachim,

One more very useful option for this SSM software.

The software should calculate best seeing value and averaged seeing value - for better and faster choice of the movies which are
suitable for further processing. I usually spend a lot of time trying to choose best movies among all recorded during given session.
This is quite annoying and boring procedure. This is the reason I public my results too late or do not publish them at all.

Do you think this is possible to include such a option?



Valery
Last edited by Valery on Mon Sep 05, 2016 5:28 pm, edited 1 time in total.


"Solar H alpha activity is the most dynamic and compelling thing you can see in a telescope, so spend accordingly." (c) Bob Yoesle.

Largest full size 185 - 356mm Dielectric Energy Rejection Filters (D-ERF) by ARIES Instruments.

RTJoe
Oh, I get it now!
Oh, I get it now!
Posts: 24
Joined: Tue Jun 16, 2015 8:26 am
Location: Germany

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by RTJoe » Mon Sep 05, 2016 10:59 am

Hello Valery,

thank you for your comments. Average and best seeing calculation should be no problem.

I will evaluate the possibilities how to use the values. It’s easy to display the values and to create a special log file for the plugin. It would be more convenient if the measures could be logged into the FC log file or appended to the name of the captured file. But this would require Torsten to extend the FC plugin interface.

Joachim



User avatar
Valery
Way More Fun to Share It!!
Way More Fun to Share It!!
Posts: 3591
Joined: Sun Nov 18, 2012 3:13 pm
Has thanked: 33 times
Been thanked: 121 times

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by Valery » Mon Sep 05, 2016 5:30 pm

RTJoe wrote:
or appended to the name of the captured file.
This will be the best option.


"Solar H alpha activity is the most dynamic and compelling thing you can see in a telescope, so spend accordingly." (c) Bob Yoesle.

Largest full size 185 - 356mm Dielectric Energy Rejection Filters (D-ERF) by ARIES Instruments.

User avatar
marktownley
Librarian
Librarian
Posts: 30168
Joined: Tue Oct 18, 2011 5:27 pm
Location: Brierley Hills, UK
Has thanked: 3359 times
Been thanked: 1358 times
Contact:

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by marktownley » Mon Sep 05, 2016 5:35 pm

Interesting! Thanks!


http://brierleyhillsolar.blogspot.co.uk/
Solar images, a collection of all the most up to date live solar data on the web, imaging & processing tutorials - please take a look!

User avatar
marktownley
Librarian
Librarian
Posts: 30168
Joined: Tue Oct 18, 2011 5:27 pm
Location: Brierley Hills, UK
Has thanked: 3359 times
Been thanked: 1358 times
Contact:

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by marktownley » Sat Oct 15, 2016 2:17 am

Will this work with the Airylab SSM?


http://brierleyhillsolar.blogspot.co.uk/
Solar images, a collection of all the most up to date live solar data on the web, imaging & processing tutorials - please take a look!

RTJoe
Oh, I get it now!
Oh, I get it now!
Posts: 24
Joined: Tue Jun 16, 2015 8:26 am
Location: Germany

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by RTJoe » Sat Oct 15, 2016 10:50 am

Hi Mark,

the plugin currently supports a “DIY” protocol for communication with the DIY SSSMon only.

I guess it would be easy to extend the FireCapture plugin for the Airylab SSM, because it’s also Arduino based and I assume it also uses a serial protocol on USB. But I don’t know whether Airylab wants to disclose their protocol. Maybe I just ask at Airylab for information.

Joachim



RTJoe
Oh, I get it now!
Oh, I get it now!
Posts: 24
Joined: Tue Jun 16, 2015 8:26 am
Location: Germany

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by RTJoe » Mon Oct 17, 2016 8:26 am

Many thanks to AiryLab - they have already send me information about the protocol!

I will add support for the SSM into the FireCapture plugin soon. Would somebody who already owns an AiryLab SSM please volunteer to test the software? I have the DIY device only.

Joachim



User avatar
robert
Way More Fun to Share It!!
Way More Fun to Share It!!
Posts: 2682
Joined: Fri Oct 14, 2011 1:49 pm
Location: Isle of Skye, Scotland
Has thanked: 1 time
Been thanked: 167 times
Contact:

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by robert » Mon Oct 17, 2016 8:36 am

Well done. Very interesting stuff!
Robert


images and animations http://tinyurl.com/h5bgoso
2020 images https://tinyurl.com/v6muwvm
2019 images https://tinyurl.com/yd5vht7r
ED80. ED100. SW200. Celestron-150mm-PST mod. C9.25. ES127
LS60PT-LS60F-B1200. B600-Cak. PGR-Ch3-IMX265

User avatar
marktownley
Librarian
Librarian
Posts: 30168
Joined: Tue Oct 18, 2011 5:27 pm
Location: Brierley Hills, UK
Has thanked: 3359 times
Been thanked: 1358 times
Contact:

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by marktownley » Wed Jul 25, 2018 6:44 pm

Hi, coming back to this thread. Is the Airylab SSM supported in Firecapture now?


http://brierleyhillsolar.blogspot.co.uk/
Solar images, a collection of all the most up to date live solar data on the web, imaging & processing tutorials - please take a look!

User avatar
robert
Way More Fun to Share It!!
Way More Fun to Share It!!
Posts: 2682
Joined: Fri Oct 14, 2011 1:49 pm
Location: Isle of Skye, Scotland
Has thanked: 1 time
Been thanked: 167 times
Contact:

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by robert » Wed Jul 25, 2018 6:56 pm

Yes
Last edited by robert on Wed Jul 25, 2018 6:59 pm, edited 1 time in total.


images and animations http://tinyurl.com/h5bgoso
2020 images https://tinyurl.com/v6muwvm
2019 images https://tinyurl.com/yd5vht7r
ED80. ED100. SW200. Celestron-150mm-PST mod. C9.25. ES127
LS60PT-LS60F-B1200. B600-Cak. PGR-Ch3-IMX265

User avatar
marktownley
Librarian
Librarian
Posts: 30168
Joined: Tue Oct 18, 2011 5:27 pm
Location: Brierley Hills, UK
Has thanked: 3359 times
Been thanked: 1358 times
Contact:

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by marktownley » Wed Jul 25, 2018 10:59 pm

I've got the plugin installed, will have a go to get things fired up in the morning.


http://brierleyhillsolar.blogspot.co.uk/
Solar images, a collection of all the most up to date live solar data on the web, imaging & processing tutorials - please take a look!



User avatar
eroel
Way More Fun to Share It!!
Way More Fun to Share It!!
Posts: 6554
Joined: Mon Dec 19, 2011 10:45 pm
Location: México D.F.
Been thanked: 1143 times

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by eroel » Thu Jul 26, 2018 2:48 am

Joachim:
A very interesting thread.
Thanks for sharing,
Best regards,
Eric.



User avatar
robert
Way More Fun to Share It!!
Way More Fun to Share It!!
Posts: 2682
Joined: Fri Oct 14, 2011 1:49 pm
Location: Isle of Skye, Scotland
Has thanked: 1 time
Been thanked: 167 times
Contact:

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by robert » Thu Jul 26, 2018 7:29 am

Interesting flare detection plug in as well. I just noticed
http://www.joachim-stehle.de/flaredetect_eng.html


images and animations http://tinyurl.com/h5bgoso
2020 images https://tinyurl.com/v6muwvm
2019 images https://tinyurl.com/yd5vht7r
ED80. ED100. SW200. Celestron-150mm-PST mod. C9.25. ES127
LS60PT-LS60F-B1200. B600-Cak. PGR-Ch3-IMX265

User avatar
marktownley
Librarian
Librarian
Posts: 30168
Joined: Tue Oct 18, 2011 5:27 pm
Location: Brierley Hills, UK
Has thanked: 3359 times
Been thanked: 1358 times
Contact:

Re: FC plugin for DIY Solar Scintillation Seeing Monitor

Post by marktownley » Thu Jul 26, 2018 8:01 am

I'm playing with the SSM plugin at the moment, I like it a lot!
